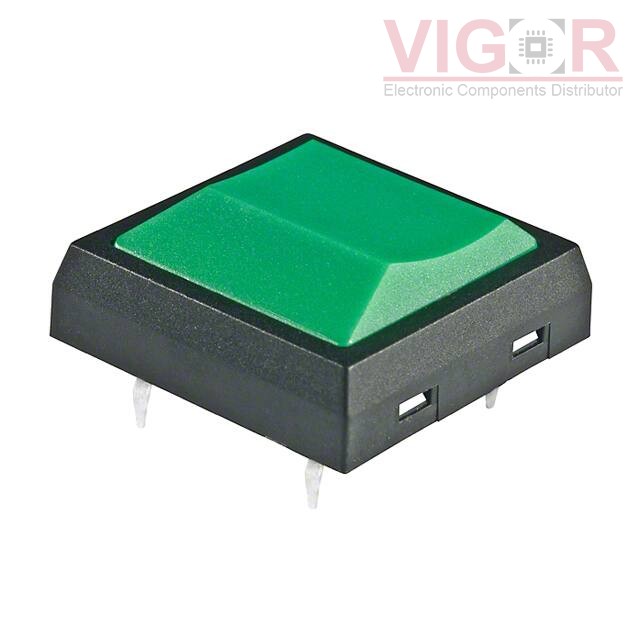

JF15SP3F

Image is for reference,
please contact us to get the real picture

Part No :

JF15SP3F

Manufacturer
NKK Switches
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
JF15SP3F PDF
Availability
45 pieces
Unit Price
$3.37000

Current price of JF15SP3F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:JF
Package:Tray
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 24VDC
Actuator Type:Square Button
Mounting Type:Through Hole
Actuator Height off PCB, Vertical:6.78mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:PC Pin
Outline:17.70mm x 17.70mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:196gf
Ingress Protection:-
Features:Process Sealed
Operating Temperature:-25°C ~ 85°C
