B3AL-1004P

B3AL-1004P

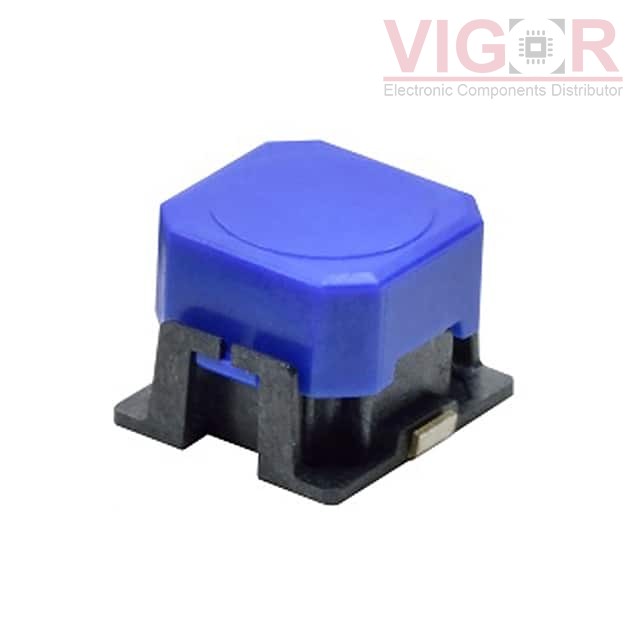

Image is for reference,
please contact us to get the real picture

Part No :

B3AL-1004P

Manufacturer
Omron Electronics Components
Description
SWITCH TACT SPST-NO BLU SMT 0.05
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
B3AL-1004P PDF
Availability
588 pieces
Unit Price
$2.06000

Current price of B3AL-1004P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B3AL-1004P Specifications
Type Description
Series:B3AL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 16VDC
Actuator Type:Square Button
Mounting Type:Surface Mount
Actuator Height off PCB, Vertical:5.00mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:SMD (SMT) Tab
Outline:6.90mm x 6.00mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:510gf
Ingress Protection:-
Features:-
Operating Temperature:-40°C ~ 90°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
