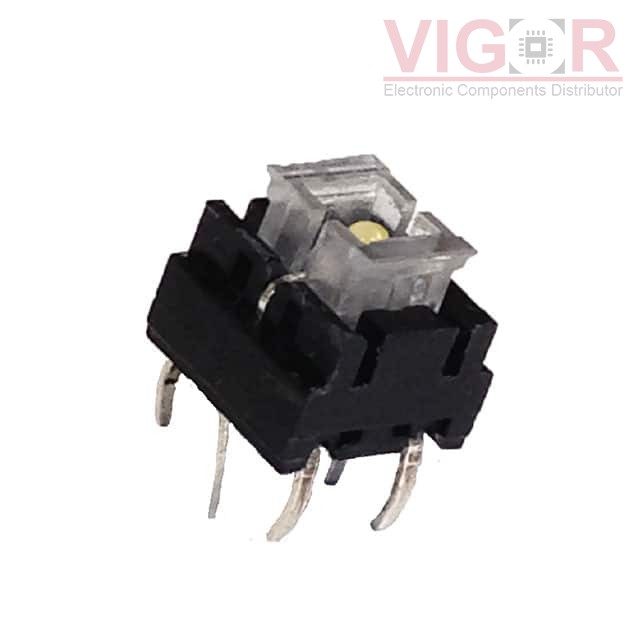

TL6275BA2PQTY

Image is for reference,
please contact us to get the real picture

Part No :: TL6275BA2PQTY

Manufacturer: E-Switch

Description: ILLUMINATED THRU HOLE TACT

Catalog: Tactile Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: TL6275BA2PQTY PDF

Availability: 0 pieces

Unit Price: ~~$5.12000~~

Current price of TL6275BA2PQTY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL6275BA2PQTY Specifications

Type	Description
Series:	TL6275
Package:	Tube
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	16.20mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	8.00mm x 8.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Yellow
Illumination Voltage (Nominal):	-
Operating Force:	350gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

1.14001.5020000

SWITCH TACTILE SPST-NO 0.1A 42V

HOT

320.21E11GRN

SWITCH TACT SPST-NO 0.025A 50V

HOT

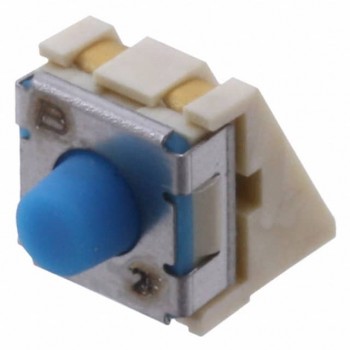

7914S-1-000
