JF15SP3C

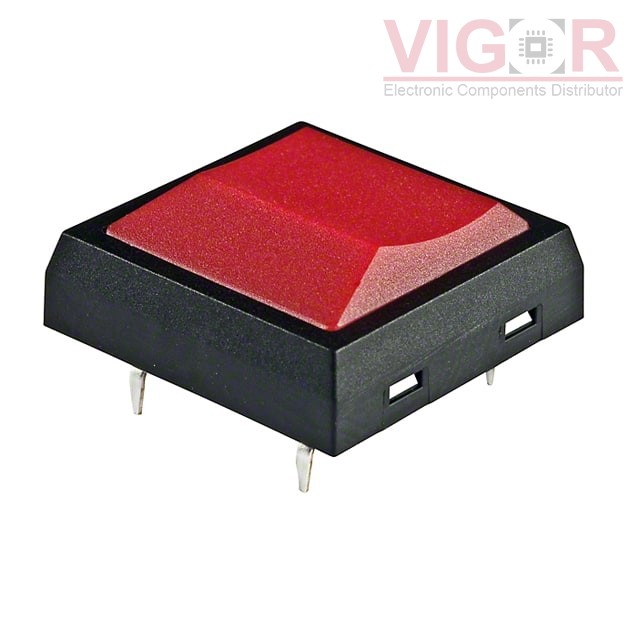

Image is for reference,
please contact us to get the real picture

Part No :: JF15SP3C

Manufacturer: NKK Switches

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: JF15SP3C PDF

Availability: 1217840 pieces

Unit Price: ~~$3.37000~~

Current price of JF15SP3C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JF15SP3C Specifications

Type	Description
Series:	JF
Package:	Tray
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	6.78mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	17.70mm x 17.70mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	196gf
Ingress Protection:	-
Features:	Process Sealed
Operating Temperature:	-25°C ~ 85°C
