JB15HBPF-JF

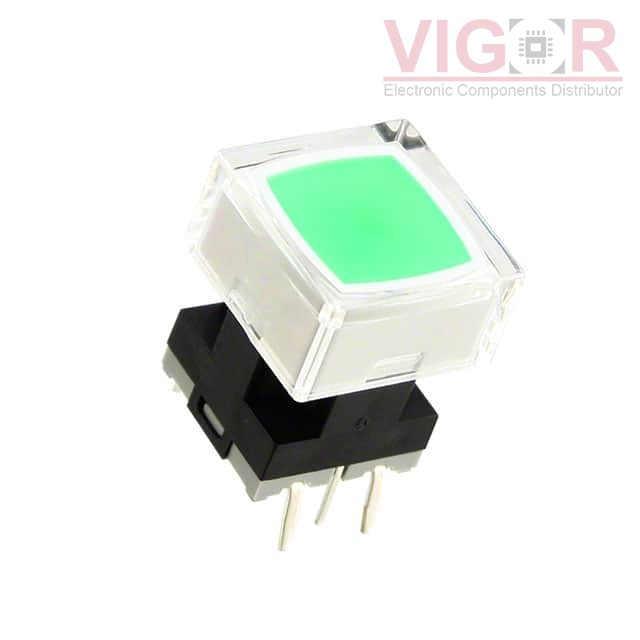

Image is for reference,
please contact us to get the real picture

Part No :: JB15HBPF-JF

Manufacturer: NKK Switches

Description: SWITCH TACT SPST-NO 0.125A 24V

Catalog: Tactile Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: JB15HBPF-JF PDF

Availability: 34411 pieces

Unit Price: ~~$5.34000~~

Current price of JB15HBPF-JF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JB15HBPF-JF Specifications

Type	Description
Series:	JB
Package:	Tray
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.125A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	14.70mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	10.00mm x 10.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Green
Illumination Voltage (Nominal):	2.1 VDC
Operating Force:	265gf
Ingress Protection:	-
Features:	Process Sealed
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
