JF15AP1EE

JF15AP1EE

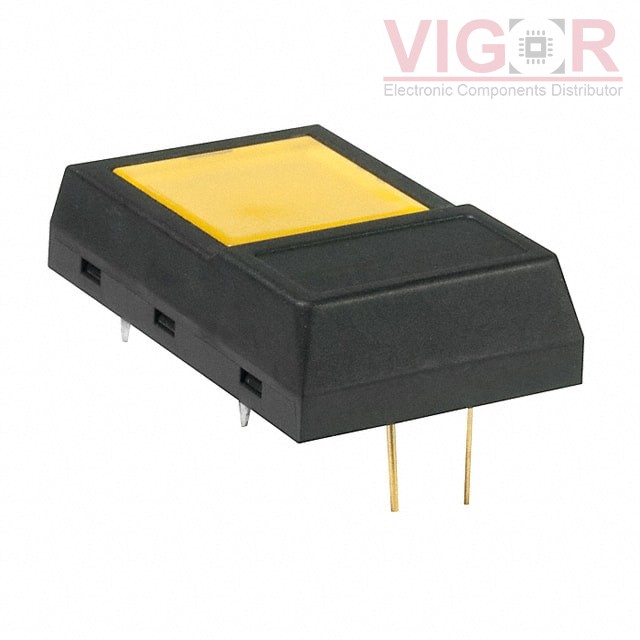

Image is for reference,
please contact us to get the real picture

Part No :

JF15AP1EE

Manufacturer
NKK Switches
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
JF15AP1EE PDF
Availability
2118 pieces
Unit Price
$7.22000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of JF15AP1EE is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

JF15AP1EE Specifications
Type Description
Series:JF
Package:Bulk
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 24VDC
Actuator Type:Square Button
Mounting Type:Through Hole
Actuator Height off PCB, Vertical:6.70mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:PC Pin
Outline:22.80mm x 17.70mm
Illumination:Illuminated
Illumination Type, Color:LED, Yellow
Illumination Voltage (Nominal):2.1 VDC
Operating Force:300gf
Ingress Protection:-
Features:Process Sealed
Operating Temperature:-25°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT EVQ-P7D01P

EVQ-P7D01P

SWITCH TACTILE SPST-NO 0.05A 12V
HOT 95CW06C3RART

95CW06C3RART

SWITCH TACTILE SPST-NO 0.05A 12V

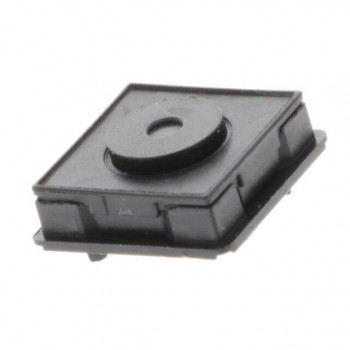

HOT 1241.1052
