M2023ES1W01

M2023ES1W01

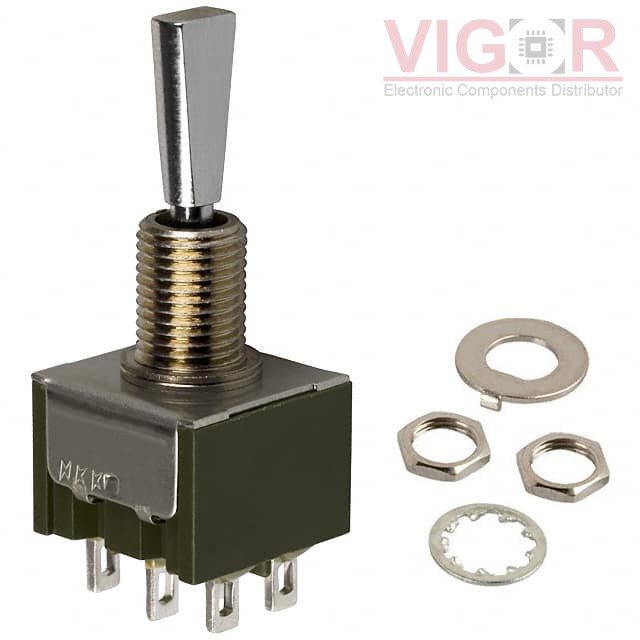

Image is for reference,
please contact us to get the real picture

Part No :

M2023ES1W01

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 6A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
M2023ES1W01 PDF
Availability
11101 pieces
Unit Price
$6.65000

Current price of M2023ES1W01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M2023ES1W01 Specifications
Type Description
Series:M
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-Off-On
Current Rating (Amps):6A (AC), 3A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Flatted
Actuator Length:11.40mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 6.50mm Dia
Bushing Thread:1/4-40
Ingress Protection:-
Features:Epoxy Sealed Terminals
Operating Temperature:-30°C ~ 85°C
