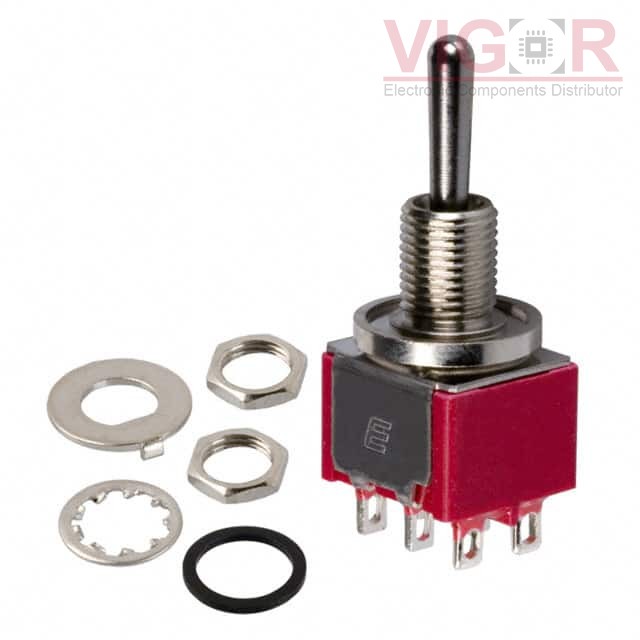

100DP3T1B9M1QEH

Image is for reference,
please contact us to get the real picture

Part No :: 100DP3T1B9M1QEH

Manufacturer: E-Switch

Description: SWITCH TOGGLE DPDT 5A 120V

Catalog: Toggle Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: 100DP3T1B9M1QEH PDF

Availability: 0 pieces

Unit Price: ~~$2.89960~~

Current price of 100DP3T1B9M1QEH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

100DP3T1B9M1QEH Specifications

Type	Description
Series:	100
Package:	Bulk
Part Status:	Active
Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-Off-On
Current Rating (Amps):	5A (AC/DC)
Voltage Rating - AC:	120 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	10.41mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 6.35mm Dia
Bushing Thread:	1/4-40
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

S821/C-UL

SWITCH TOGGLE DPST 30A 125V

HOT

7201K12CWAQE

SWITCH TOGGLE DPDT 5A 120V

HOT

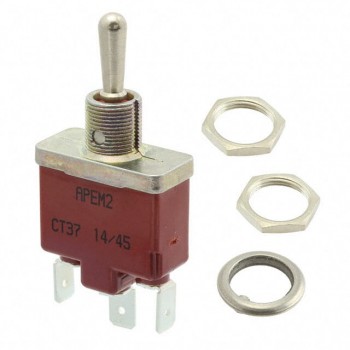

CT45031N002
