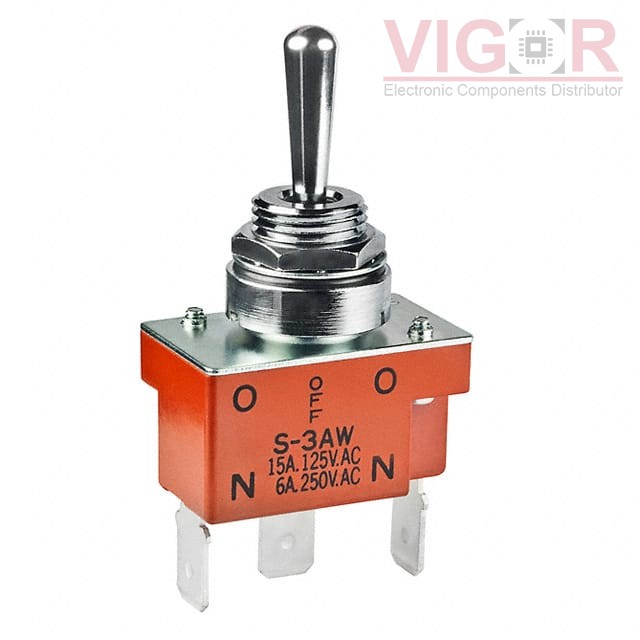

S3AWF

S3AWF

Image is for reference,
please contact us to get the real picture

Part No :

S3AWF

Manufacturer
NKK Switches
Description
SWITCH TOGGLE SPDT 15A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
S3AWF PDF
Availability
117 pieces
Unit Price
$11.81000

Current price of S3AWF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S3AWF Specifications
Type Description
Series:S
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:SPDT
Switch Function:On-Off-On
Current Rating (Amps):15A (AC), 20A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Standard Round
Actuator Length:17.50mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:-
Operating Temperature:-30°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7211SYCQE

7211SYCQE

SWITCH TOGGLE SP3T 5A 120V

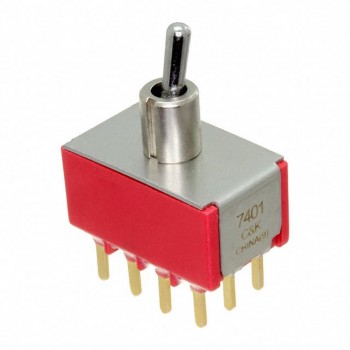

HOT 7401LYZBE
