A9TS22-0011

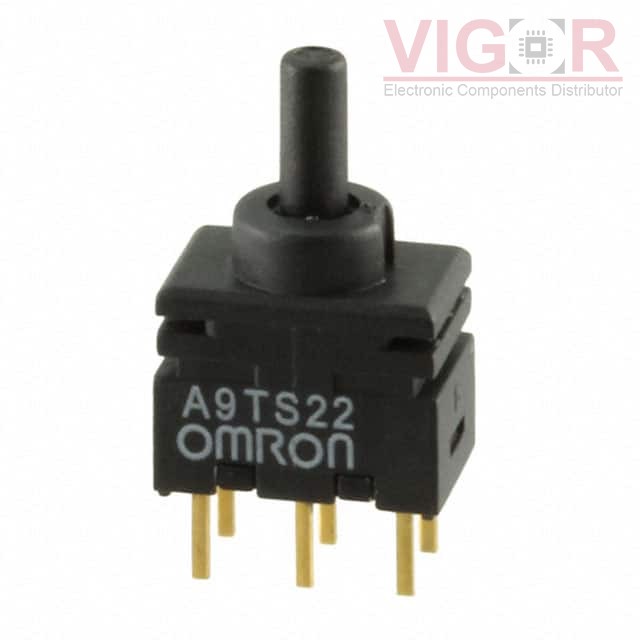

Image is for reference,
please contact us to get the real picture

Part No :: A9TS22-0011

Manufacturer: Omron Electronics Components

Description: SWITCH TOGGLE DPDT 100MA 28V

Catalog: Toggle Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: A9TS22-0011 PDF

Availability: 716 pieces

Unit Price: ~~$14.21000~~

Current price of A9TS22-0011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

A9TS22-0011 Specifications

Type	Description
Series:	A9TS
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Circuit:	DPDT
Switch Function:	On-Off-On
Current Rating (Amps):	100mA (AC/DC)
Voltage Rating - AC:	28 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	3.80mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	PC Pin
Panel Cutout Dimensions:	-
Bushing Thread:	Unthreaded
Ingress Protection:	IP64 - Dust Tight, Water Resistant
Features:	Sealed - Flux Protection
Operating Temperature:	-20°C ~ 80°C

Please confirm the specifications of the products when ordering.
