TL22DNAW016G

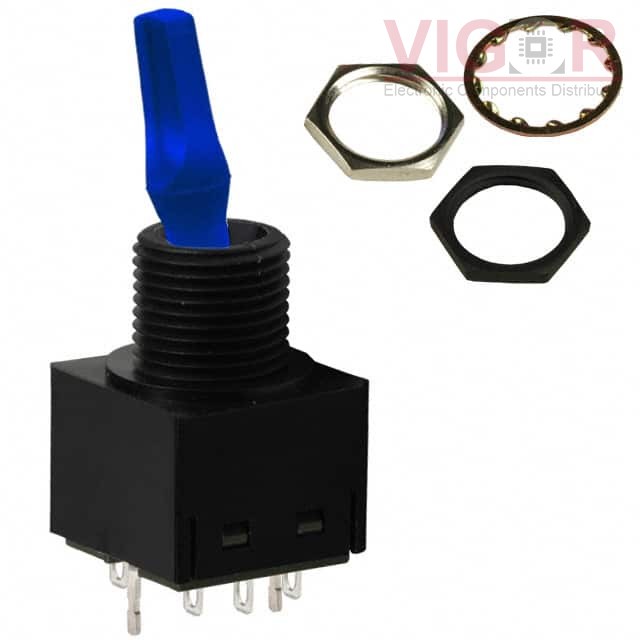

Image is for reference,
please contact us to get the real picture

Part No :: TL22DNAW016G

Manufacturer: NKK Switches

Description: SWITCH TOGGLE DPDT 6A 125V

Catalog: Toggle Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: TL22DNAW016G PDF

Availability: 10045 pieces

Unit Price: ~~$15.13000~~

Current price of TL22DNAW016G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL22DNAW016G Specifications

Type	Description
Series:	TL
Package:	Bulk
Part Status:	Active
Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	6A (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	12 V
Actuator Type:	Flatted
Actuator Length:	17.50mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Blue
Illumination Voltage (Nominal):	3.3 VDC
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 12.50mm Dia
Bushing Thread:	M12 x 1
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Features:	Epoxy Sealed Terminals
Operating Temperature:	-10°C ~ 55°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
