S7AWB

S7AWB

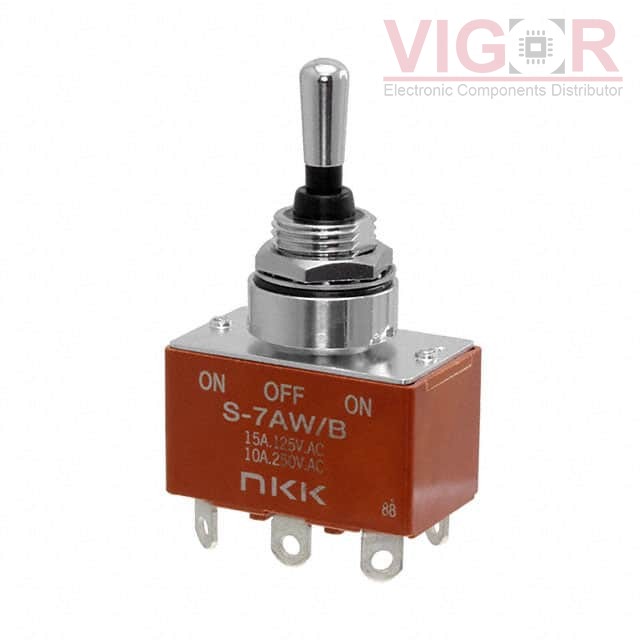

Image is for reference,
please contact us to get the real picture

Part No :

S7AWB

Manufacturer
NKK Switches
Description
STD SIZE TOGGLE/MEDIUM CAPACITY/
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
S7AWB PDF
Availability
6318 pieces
Unit Price
$26.53000

Current price of S7AWB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S7AWB Specifications
Type Description
Series:S
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-Off-On
Current Rating (Amps):15A (AC), 20A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Standard Round
Actuator Length:17.50mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:IP68 - Dust Tight, Waterproof
Features:Waterproof Boot
Operating Temperature:-30°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 2M1-4P1-T6-B2-M2QE

2M1-4P1-T6-B2-M2QE

SWITCH TOGGLE 4PDT 5A 120V

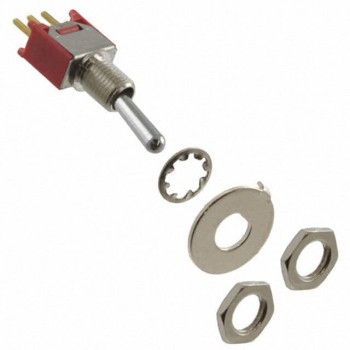

HOT 200MSP2T1B1M2REH

200MSP2T1B1M2REH

SWITCH TOGGLE SPDT 0.4VA 20V

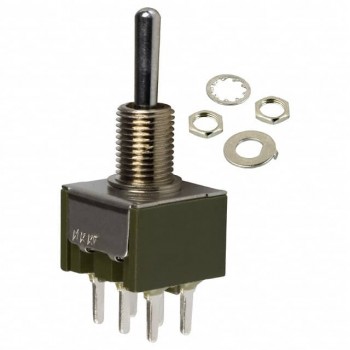

HOT M2022SS1W03
