TL22SFAG015F

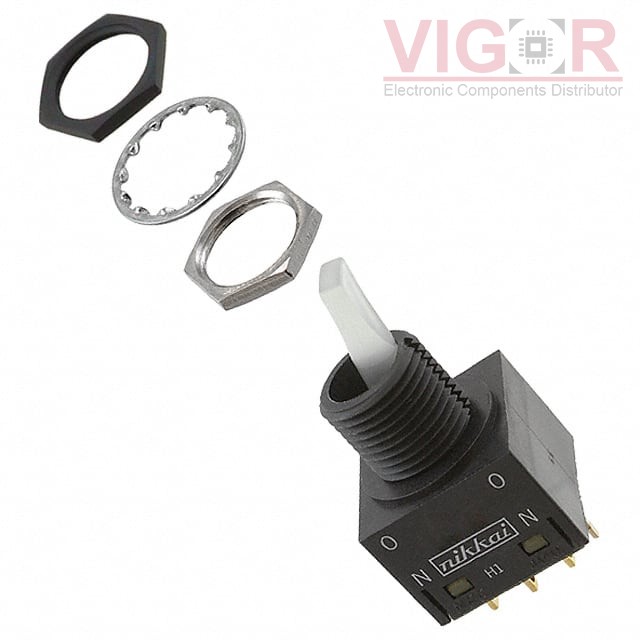

Image is for reference,
please contact us to get the real picture

Part No :: TL22SFAG015F

Manufacturer: NKK Switches

Description: SWITCH TOGGLE DPDT 0.4VA 28V

Catalog: Toggle Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: TL22SFAG015F PDF

Availability: 230 pieces

Unit Price: ~~$14.01000~~

Current price of TL22SFAG015F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL22SFAG015F Specifications

Type	Description
Series:	TL
Package:	Tray
Part Status:	Active
Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	28 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted
Actuator Length:	11.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Green
Illumination Voltage (Nominal):	2.3 VDC
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 12.50mm Dia
Bushing Thread:	M12 x 1
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Features:	Epoxy Sealed Terminals
Operating Temperature:	-10°C ~ 55°C

Please confirm the specifications of the products when ordering.
