M2032LL1W01

M2032LL1W01

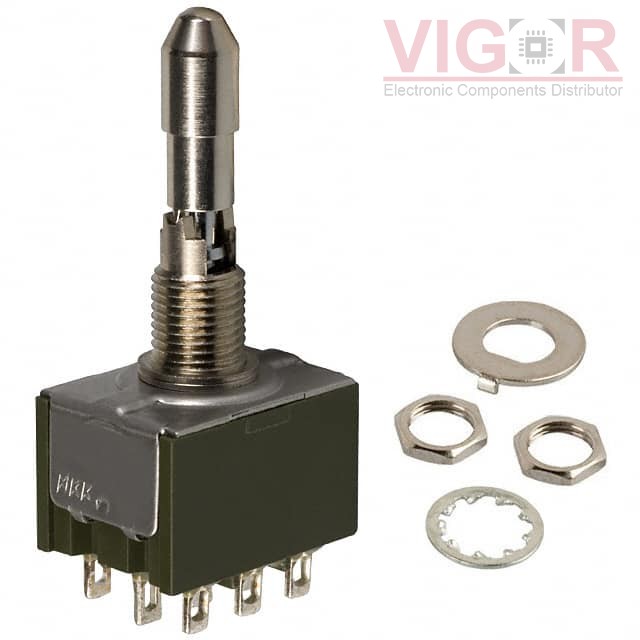

Image is for reference,
please contact us to get the real picture

Part No :

M2032LL1W01

Manufacturer
NKK Switches
Description
SWITCH TOGGLE 3PDT 6A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
M2032LL1W01 PDF
Availability
97494 pieces
Unit Price
$10.36000

Current price of M2032LL1W01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M2032LL1W01 Specifications
Type Description
Series:M
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:3PDT
Switch Function:On-On
Current Rating (Amps):6A (AC), 4A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Locking Lever
Actuator Length:16.50mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 6.50mm Dia
Bushing Thread:1/4-40
Ingress Protection:-
Features:Epoxy Sealed Terminals
Operating Temperature:-30°C ~ 85°C
