TL22SCAG015C

TL22SCAG015C

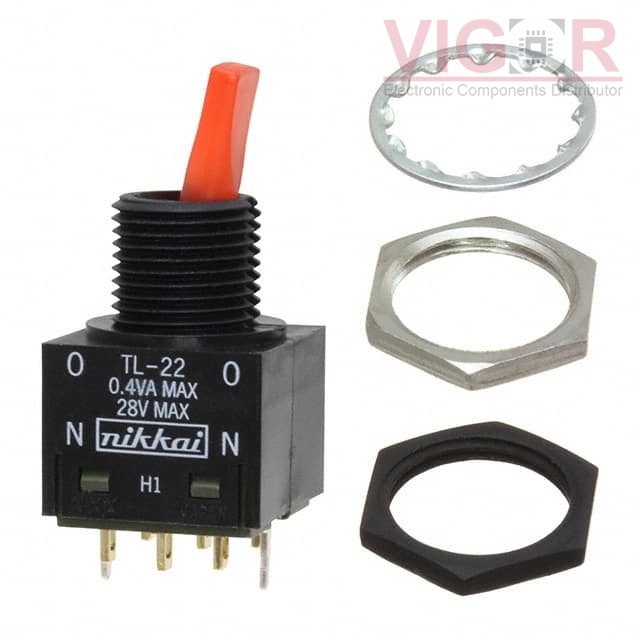

Image is for reference,
please contact us to get the real picture

Part No :

TL22SCAG015C

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 0.4VA 28V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
TL22SCAG015C PDF
Availability
15 pieces
Unit Price
$14.01000

Current price of TL22SCAG015C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL22SCAG015C Specifications
Type Description
Series:TL
Package:Tray
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):0.4VA (AC/DC)
Voltage Rating - AC:28 V
Voltage Rating - DC:28 V
Actuator Type:Flatted
Actuator Length:11.00mm
Illumination:Illuminated
Illumination Type, Color:LED, Red
Illumination Voltage (Nominal):2 VDC
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:IP65 - Dust Tight, Water Resistant
Features:Epoxy Sealed Terminals
Operating Temperature:-10°C ~ 55°C
