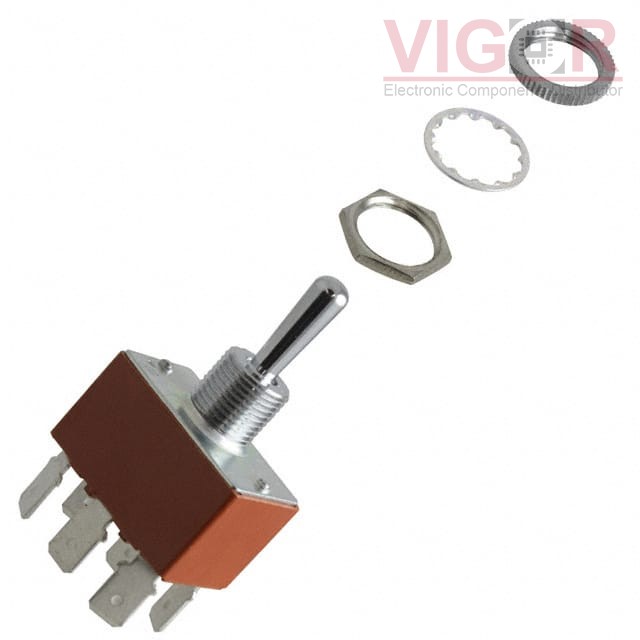

S7F

S7F

Image is for reference,
please contact us to get the real picture

Part No :

S7F

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 20A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
S7F PDF
Availability
424316 pieces
Unit Price
$12.54000

Current price of S7F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S7F Specifications
Type Description
Series:S
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-Off-On
Current Rating (Amps):20A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Standard Round
Actuator Length:17.50mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:-
Features:-
Operating Temperature:-10°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7411SYZBES

7411SYZBES

SWITCH TOGGLE DP3T 0.4VA 20V
HOT CT35031N002

CT35031N002

SWITCH TOGGLE SPDT 10A 125V

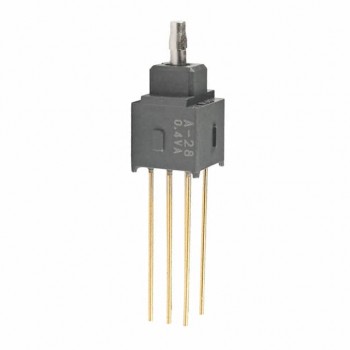

HOT A28KW
