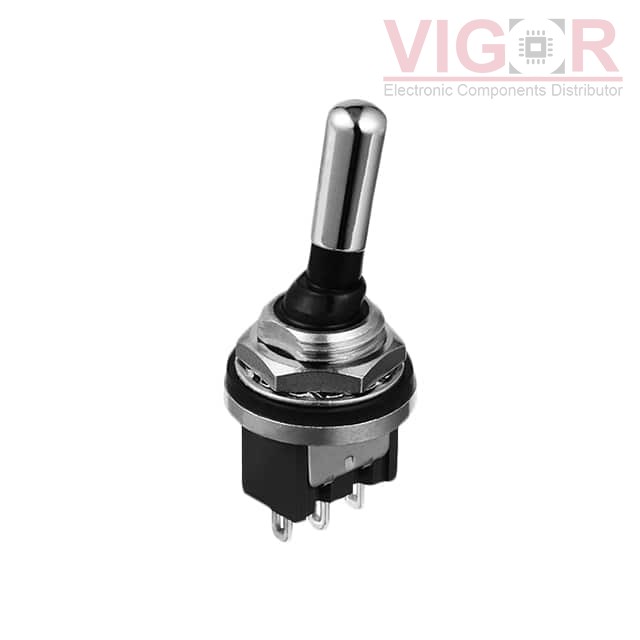

M2023WBG01

M2023WBG01

Image is for reference,
please contact us to get the real picture

Part No :

M2023WBG01

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 0.4VA 28V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
M2023WBG01 PDF
Availability
46 pieces
Unit Price
$20.75000

Current price of M2023WBG01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M2023WBG01 Specifications
Type Description
Series:M
Package:Tray
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-Off-On
Current Rating (Amps):0.4VA (AC/DC)
Voltage Rating - AC:28 V
Voltage Rating - DC:28 V
Actuator Type:Standard Round
Actuator Length:20.00mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:Waterproof Boot
Operating Temperature:-30°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CT46001N020

CT46001N020

SWITCH TOGGLE DPDT 10A 125V

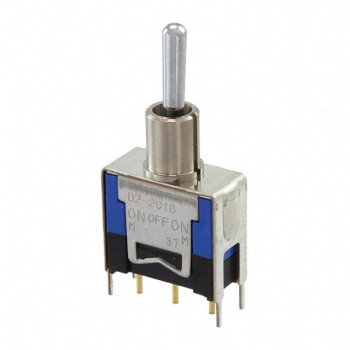

HOT D22018H

D22018H

SWITCH TOGGLE SPDT 0.4VA 48V

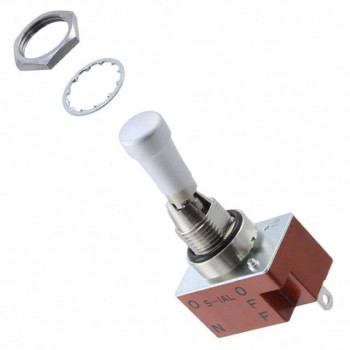

HOT S1AL
