SP-51

SP-51

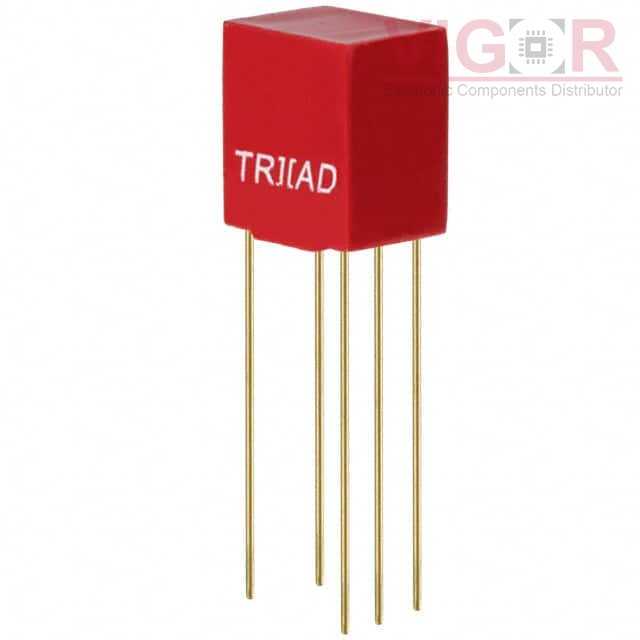

Image is for reference,
please contact us to get the real picture

Part No :

SP-51

Manufacturer
Triad Magnetics
Description
TRANSER 900 CT/ 600 OHM AUDIO
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
SP-51 PDF
Availability
6101 pieces
Unit Price
$18.08000

Current price of SP-51 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SP-51 Specifications
Type Description
Series:Red-Spec
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1.22:1
Impedance - Primary (Ohms):900CT
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:104Ohm
DC Resistance (DCR) - Secondary:96Ohm
Transformer Type:Audio Coupling
Frequency Range:300Hz ~ 100kHz
Frequency Response:±2dB
Voltage - Isolation:1000VRMS @ 1 Second
Insertion Loss:-
Return Loss:-
Power Level:50mW
Operating Temperature:-40°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max):0.465" (11.80mm)
Termination Style:PC Pin
