TY-146P-B

TY-146P-B

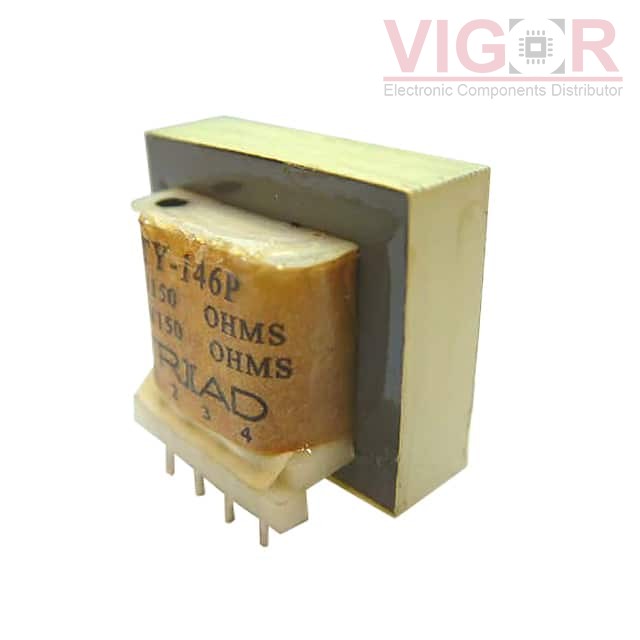

Image is for reference,
please contact us to get the real picture

Part No :

TY-146P-B

Manufacturer
Triad Magnetics
Description
TRANSF 600 AUDIO CT 150/600CT 15
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TY-146P-B PDF
Availability
0 pieces
Unit Price
$5.16146

Current price of TY-146P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-146P-B Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600, 150/150
Impedance - Secondary (Ohms):600, 150/150
DC Resistance (DCR) - Primary:17Ohm, 19Ohm
DC Resistance (DCR) - Secondary:14.5Ohm, 22Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:200Hz ~ 15kHz
Frequency Response:±2dB
Voltage - Isolation:1500V
Insertion Loss:1.5dB @ 1kHz
Return Loss:26dB
Power Level:-
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.375" L x 1.187" W (34.93mm x 30.15mm)
Height - Seated (Max):1.187" (30.15mm)
Termination Style:PC Pin
