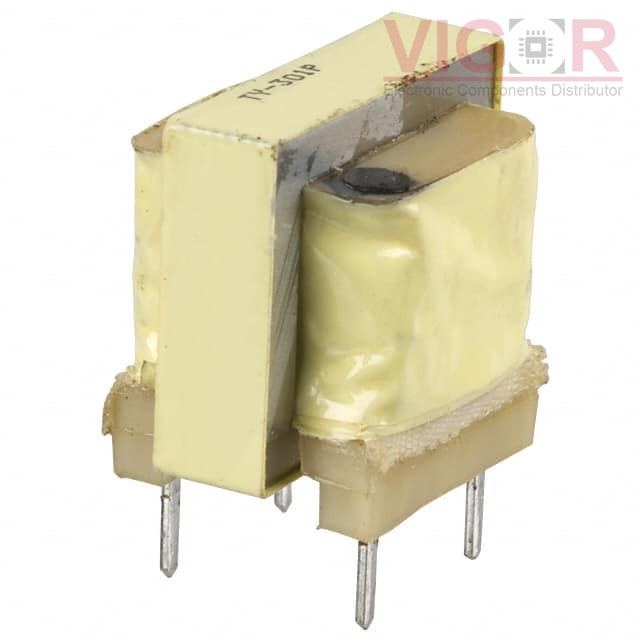

TY-301P

TY-301P

Image is for reference,
please contact us to get the real picture

Part No :

TY-301P

Manufacturer
Triad Magnetics
Description
TRANSF 900 OHM SEC. 0MA DC TEL
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TY-301P PDF
Availability
1256 pieces
Unit Price
$3.97760

Current price of TY-301P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-301P Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:1.27
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):900
DC Resistance (DCR) - Primary:36Ohm
DC Resistance (DCR) - Secondary:76Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VAC
Insertion Loss:1dB Typ
Return Loss:26dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max):0.740" (18.80mm)
Termination Style:PC Pin
