TY-305P

TY-305P

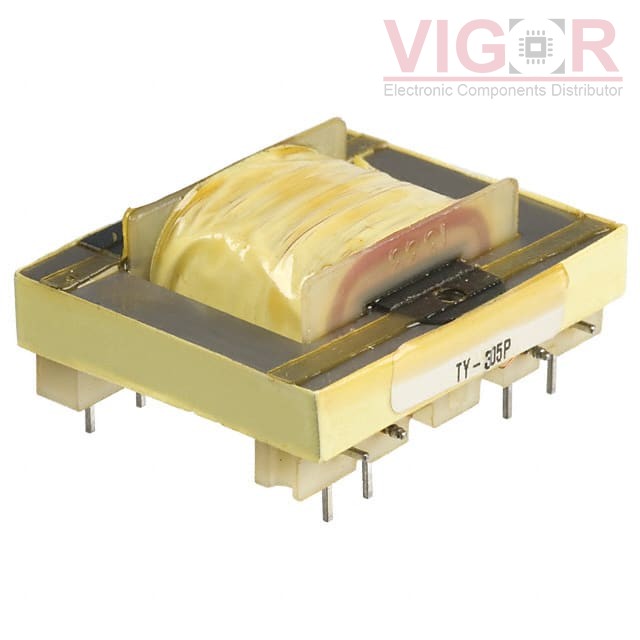

Image is for reference,
please contact us to get the real picture

Part No :

TY-305P

Manufacturer
Triad Magnetics
Description
TRANSF 600 OHM 100MA DC TEL
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
TY-305P PDF
Availability
183 pieces
Unit Price
$16.86000

Current price of TY-305P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-305P Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:0.90
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:108Ohm
DC Resistance (DCR) - Secondary:61Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VAC
Insertion Loss:1.5dB Typ
Return Loss:10dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max):0.680" (17.27mm)
Termination Style:PC Pin
