TY-307P-B

TY-307P-B

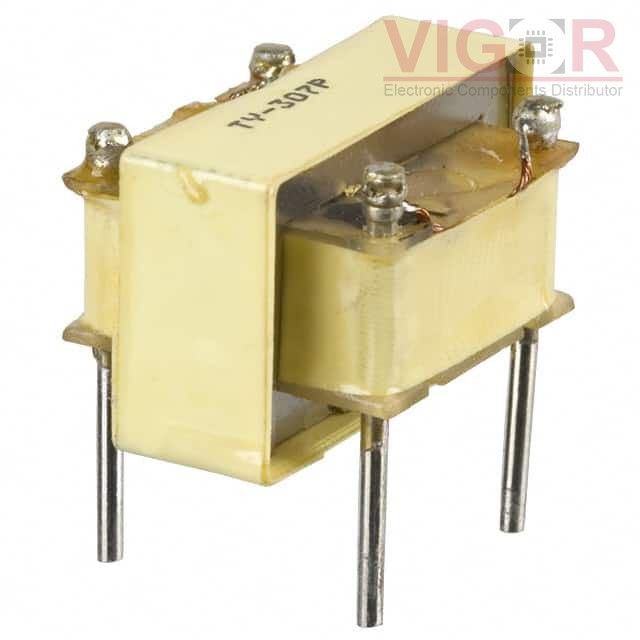

Image is for reference,
please contact us to get the real picture

Part No :

TY-307P-B

Manufacturer
Triad Magnetics
Description
TRANSF 600 OHM 0MA DC TEL
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
TY-307P-B PDF
Availability
0 pieces
Unit Price
$3.34500

Current price of TY-307P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-307P-B Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:1.07
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:43Ohm
DC Resistance (DCR) - Secondary:61Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VAC
Insertion Loss:1dB Typ
Return Loss:26dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.670" L x 0.781" W (17.02mm x 19.84mm)
Height - Seated (Max):0.470" (11.94mm)
Termination Style:PC Pin
