TY-303P

TY-303P

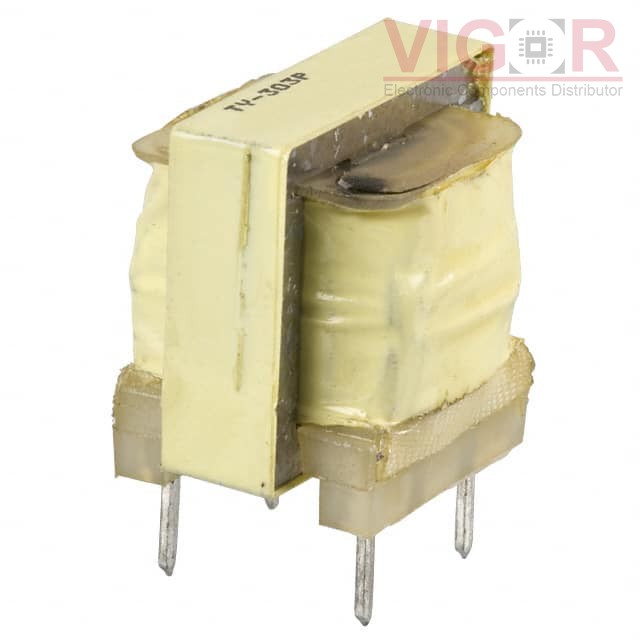

Image is for reference,
please contact us to get the real picture

Part No :

TY-303P

Manufacturer
Triad Magnetics
Description
TRANSF 4000 OHM PRI. 0MA DC TEL
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
TY-303P PDF
Availability
190944 pieces
Unit Price
$5.38000

Current price of TY-303P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-303P Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:2.43:1
Impedance - Primary (Ohms):4k
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:260Ohm
DC Resistance (DCR) - Secondary:52Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VAC
Insertion Loss:1dB Typ
Return Loss:26dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.812" L x 0.715" W (20.62mm x 18.16mm)
Height - Seated (Max):0.740" (18.80mm)
Termination Style:PC Pin
