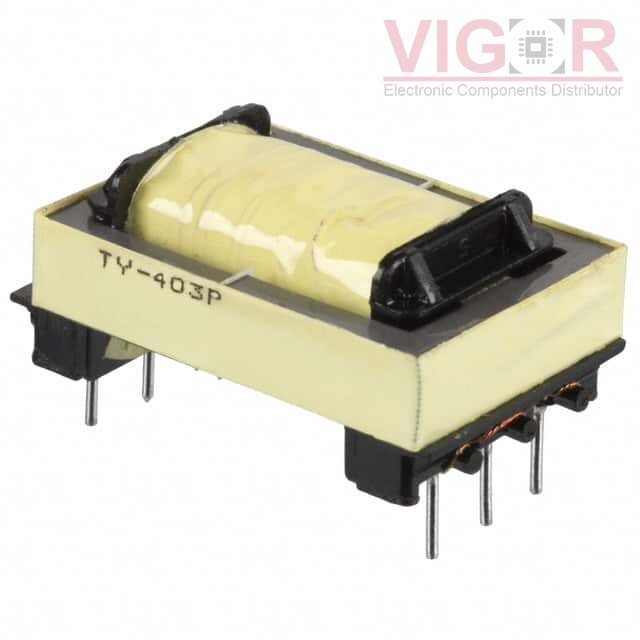

TY-403P-B

TY-403P-B

Image is for reference,
please contact us to get the real picture

Part No :

TY-403P-B

Manufacturer
Triad Magnetics
Description
TRANSF 600 SPLIT SEC .90MA TEL
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
TY-403P-B PDF
Availability
0 pieces
Unit Price
$3.17750

Current price of TY-403P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-403P-B Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1.81:1
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:80Ohm
DC Resistance (DCR) - Secondary:56Ohm, 56Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VAC
Insertion Loss:1.75dB Typ
Return Loss:15dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.815" L x 1.250" W (20.70mm x 31.75mm)
Height - Seated (Max):0.530" (13.46mm)
Termination Style:PC Pin
