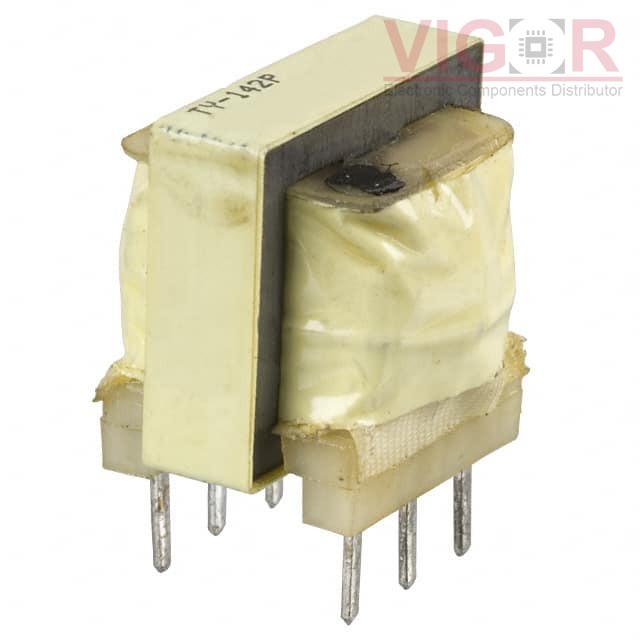

TY-142P

Image is for reference,
please contact us to get the real picture

Part No :: TY-142P

Manufacturer: Triad Magnetics

Description: TRANSF 10K AUDIO CTAP/2K CTAP

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: TY-142P PDF

Availability: 2190865 pieces

Unit Price: ~~$5.82000~~

Current price of TY-142P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-142P Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	2.24:1
Impedance - Primary (Ohms):	10kCT
Impedance - Secondary (Ohms):	2kCT
DC Resistance (DCR) - Primary:	750Ohm
DC Resistance (DCR) - Secondary:	217Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	200Hz ~ 15kHz
Frequency Response:	±2dB
Voltage - Isolation:	1500V
Insertion Loss:	1.5dB
Return Loss:	26dB
Power Level:	100mW
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max):	0.740" (18.80mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
