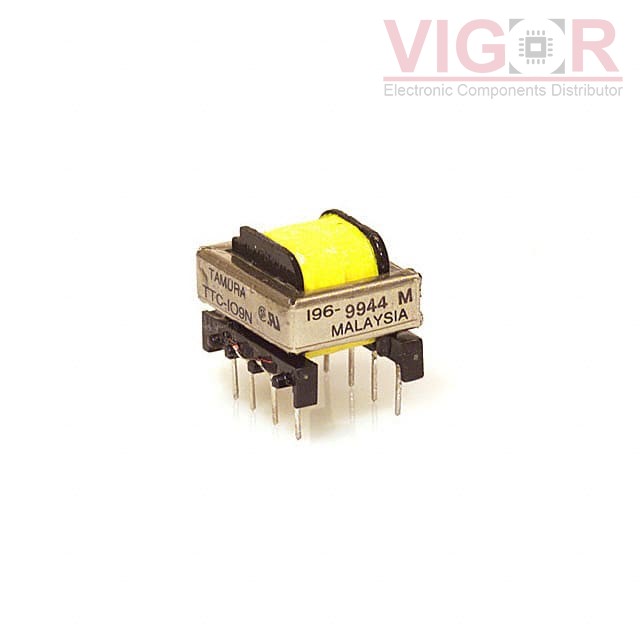

TTC-109N

TTC-109N

Image is for reference,
please contact us to get the real picture

Part No :

TTC-109N

Manufacturer
Tamura
Description
TRANSF TELE COUP 600 OHM 90MADC
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
TTC-109N PDF
Availability
0 pieces
Unit Price
$2.44200

Current price of TTC-109N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-109N Specifications
Type Description
Series:TTC
Package:Bulk
Part Status:Obsolete
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:71Ohm
DC Resistance (DCR) - Secondary:117Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:660Hz ~ 3.5kHz
Frequency Response:-1dB ~ 0.7dB
Voltage - Isolation:1500VRMS @ 1 Minute
Insertion Loss:3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
Return Loss:-
Power Level:-45dB ~ 10dB
Operating Temperature:-
Approval Agency:CSA-C22.2 No. 66-M1988, UL1862
Mounting Type:Through Hole
Size / Dimension:0.823" L x 0.752" W (20.90mm x 19.10mm)
Height - Seated (Max):0.630" (16.00mm)
Termination Style:PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

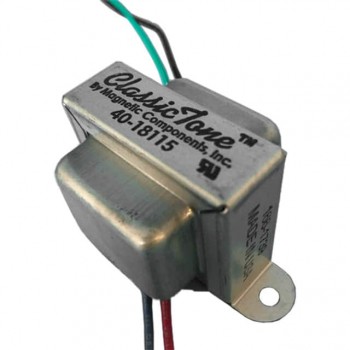

HOT 40-18115

40-18115

OUTPUT TRANSFORMER # 4018115

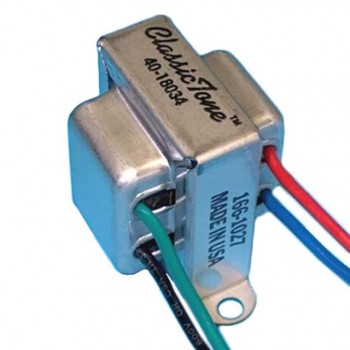

HOT 40-18034

40-18034

CLASSICTONE DRIVER # 4018034

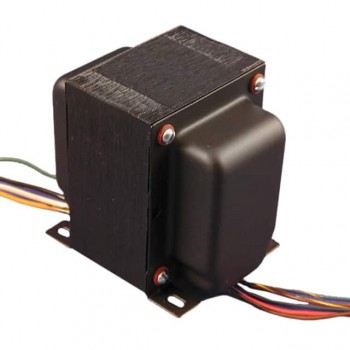

HOT 1650TA
