106M

106M

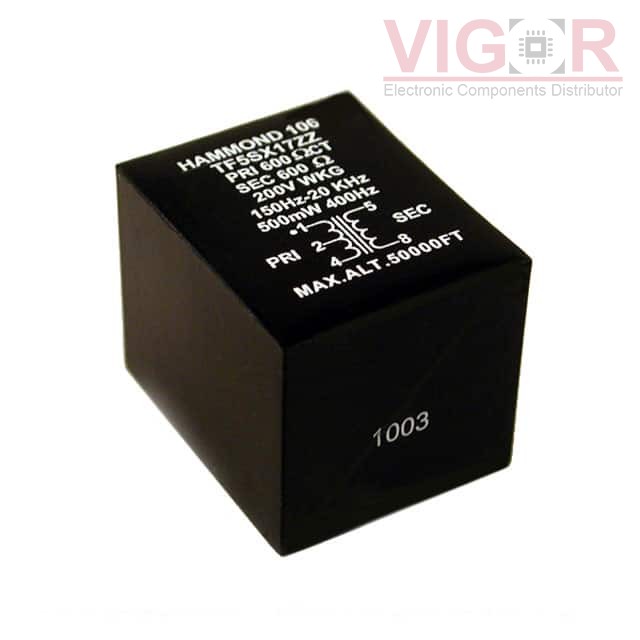

Image is for reference,
please contact us to get the real picture

Part No :

106M

Manufacturer
Hammond Manufacturing
Description
TRANSFORMER AUDIO 20000/2000CT
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
106M PDF
Availability
0 pieces
Unit Price
$25.52000

Current price of 106M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

106M Specifications
Type Description
Series:106
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:-
Impedance - Primary (Ohms):20k
Impedance - Secondary (Ohms):2kCT
DC Resistance (DCR) - Primary:1.18kOhm
DC Resistance (DCR) - Secondary:89Ohm
Transformer Type:Miniature Epoxy Potted
Frequency Range:215Hz
Frequency Response:-1dB
Voltage - Isolation:200V
Insertion Loss:1dB
Return Loss:-
Power Level:150mW
Operating Temperature:-
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.080" L x 0.880" W (27.43mm x 22.35mm)
Height - Seated (Max):0.950" (24.13mm)
Termination Style:PC Pin
