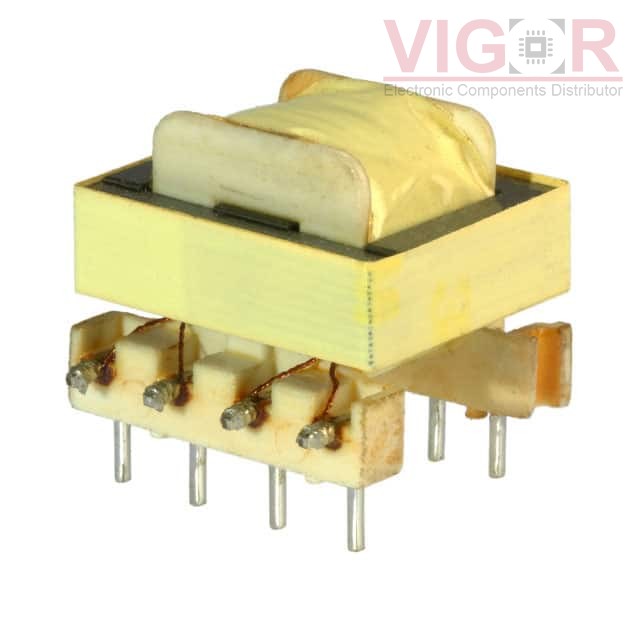

TY-250P

TY-250P

Image is for reference,
please contact us to get the real picture

Part No :

TY-250P

Manufacturer
Triad Magnetics
Description
PC MOUNT AUDIO TRANSFORMER
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
TY-250P PDF
Availability
21 pieces
Unit Price
$5.60000

Current price of TY-250P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-250P Specifications
Type Description
Series:TY
Package:Box
Part Status:Active
Turns Ratio - Primary:Secondary:1:1, 2:1
Impedance - Primary (Ohms):1kCT
Impedance - Secondary (Ohms):1kCT
DC Resistance (DCR) - Primary:172Ohm
DC Resistance (DCR) - Secondary:172Ohm
Transformer Type:Impedance Matching
Frequency Range:20Hz ~ 20kHz
Frequency Response:±1dB
Voltage - Isolation:1500VAC
Insertion Loss:2.8dB Max @ 1kHz
Return Loss:-
Power Level:-
Operating Temperature:-40°C ~ 105°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.800" L x 0.770" W (20.32mm x 19.56mm)
Height - Seated (Max):0.700" (17.78mm)
Termination Style:PC Pin
