B78417A2285A003

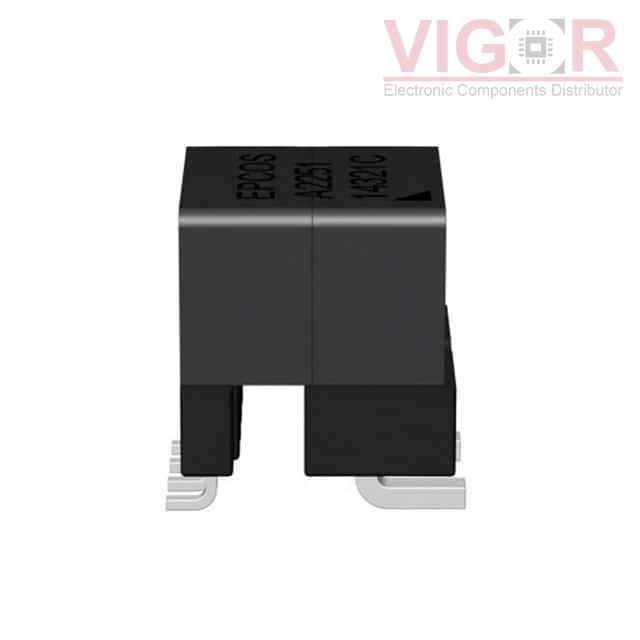

Image is for reference,
please contact us to get the real picture

Part No :: B78417A2285A003

Manufacturer: TDK EPCOS

Description: CURR SENSE XFMR 1:50 SMD

Catalog: Current Sense Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 29 - Jul 03 2025

DataSheet: B78417A2285A003 PDF

Availability: 590 pieces

Unit Price: ~~$5.94000~~

Current price of B78417A2285A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78417A2285A003 Specifications

Type	Description
Series:	B78417
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 250kHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	1:50
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1.9mOhm Primary, 2.1Ohm Secondary
Current Ratio:	-
DC Resistance (DCR):	Surface Mount
Ratings:	0.417" L x 0.480" W (10.60mm x 12.20mm)
Mounting Type:	0.433" (11.00mm)
Size / Dimension:	Gull Wing

Please confirm the specifications of the products when ordering.
