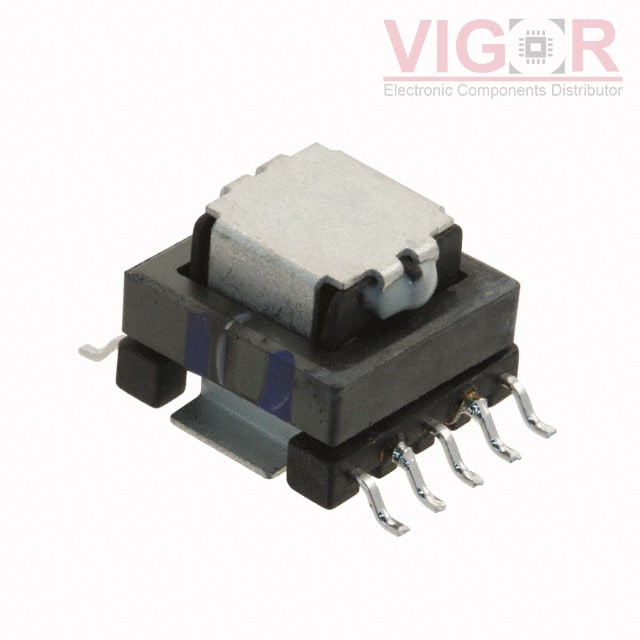

B82801C1265A150

B82801C1265A150

Image is for reference,
please contact us to get the real picture

Part No :

B82801C1265A150

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:150 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
B82801C1265A150 PDF
Availability
182 pieces
Unit Price
$3.26000

Current price of B82801C1265A150 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82801C1265A150 Specifications
Type Description
Series:B82801C
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 500kHz
Type:Invasive
Current Rating (Amps):1:150
Inductance:-
ET (Volt-Time):0.28mOhm Primary, 2.2Ohm Secondary
Turns Ratio - Primary:Secondary:-
Current Ratio:Surface Mount
DC Resistance (DCR):0.560" L x 0.530" W (14.22mm x 13.46mm)
Ratings:0.394" (10.00mm)
Mounting Type:Gull Wing
