CSE5-100501

CSE5-100501

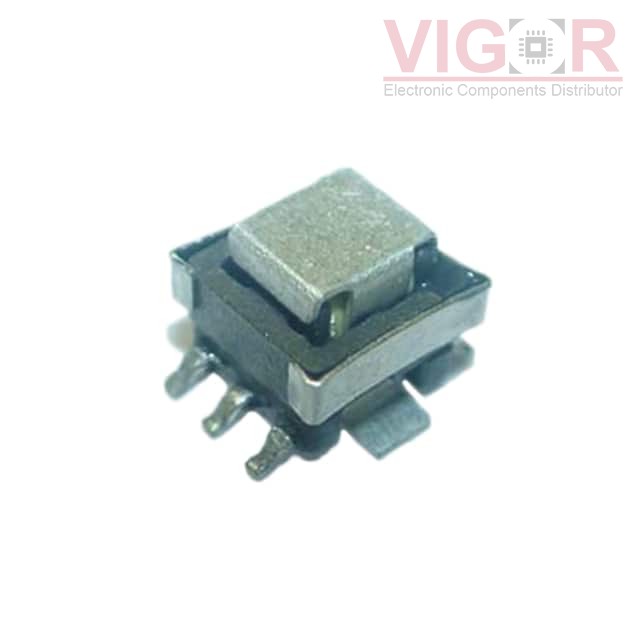

Image is for reference,
please contact us to get the real picture

Part No :

CSE5-100501

Manufacturer
Triad Magnetics
Description
CURR SENSE XFMR 1:50 10A SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
CSE5-100501 PDF
Availability
216750 pieces
Unit Price
$3.25000

Current price of CSE5-100501 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSE5-100501 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:250kHz Min
Type:Invasive
Current Rating (Amps):1:50
Inductance:-
ET (Volt-Time):1.5Ohm Secondary
Turns Ratio - Primary:Secondary:-
Current Ratio:Surface Mount
DC Resistance (DCR):0.272" L x 0.303" W (6.90mm x 7.70mm)
Ratings:0.210" (5.33mm)
Mounting Type:Gull Wing
