B82801B0205A100

B82801B0205A100

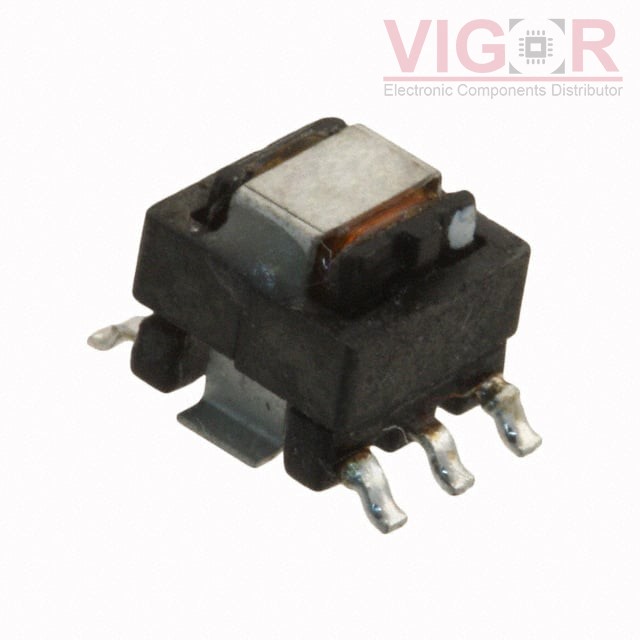

Image is for reference,
please contact us to get the real picture

Part No :

B82801B0205A100

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:100 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
B82801B0205A100 PDF
Availability
222 pieces
Unit Price
$2.20000

Current price of B82801B0205A100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82801B0205A100 Specifications
Type Description
Series:B82801B
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 1MHz
Type:Invasive
Current Rating (Amps):-
Inductance:1:100
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:0.8mOhm Primary, 5.5Ohm Secondary
Current Ratio:-
DC Resistance (DCR):Surface Mount
Ratings:0.280" L x 0.320" W (7.11mm x 8.13mm)
Mounting Type:0.200" (5.08mm)
Size / Dimension:Gull Wing
