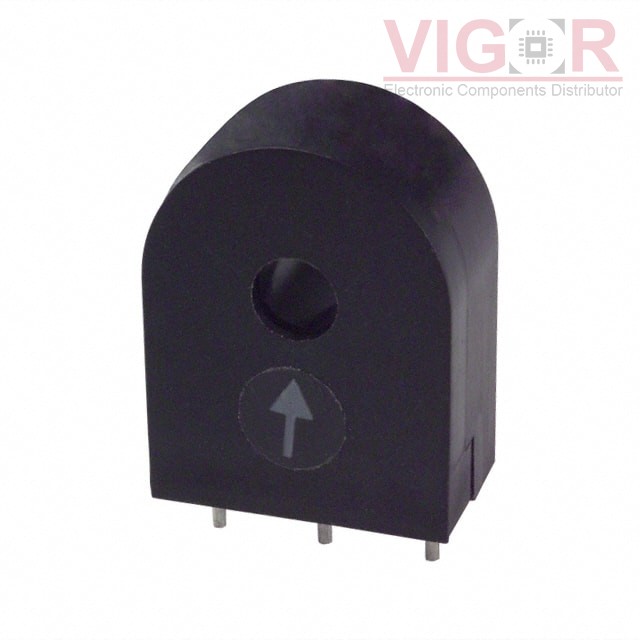

CST306-1A

CST306-1A

Image is for reference,
please contact us to get the real picture

Part No :

CST306-1A

Manufacturer
Triad Magnetics
Description
CURR SENSE XFMR 35A T/H
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CST306-1A PDF
Availability
5754 pieces
Unit Price
$5.65000

Current price of CST306-1A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CST306-1A Specifications
Type Description
Series:CST
Package:Bulk
Part Status:Active
Frequency Range:20kHz ~ 200kHz
Type:Non-Invasive (Solid Core)
Current Rating (Amps):35 A
Inductance:3.5 mH
ET (Volt-Time):500VµS
Turns Ratio - Primary:Secondary:-
Current Ratio:50:1
DC Resistance (DCR):340mOhm Max
Ratings:-
Mounting Type:Through Hole
Size / Dimension:0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max):0.915" (23.24mm)
Termination Style:PC Pin
