PA1005.070NLT

PA1005.070NLT

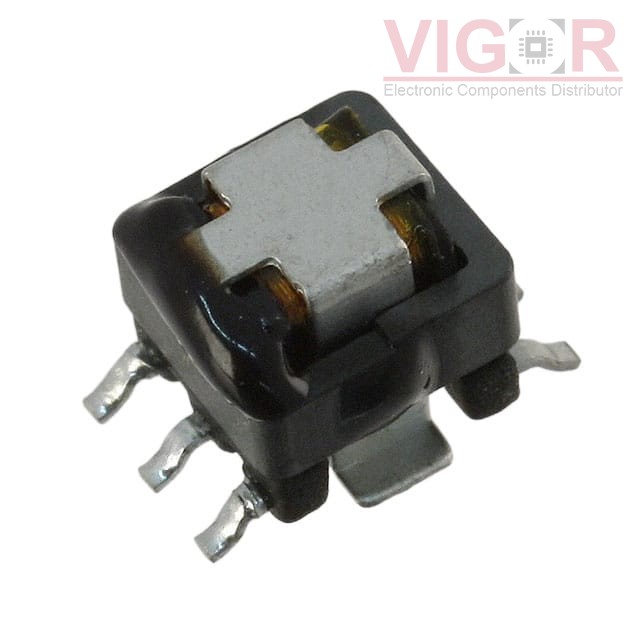

Image is for reference,
please contact us to get the real picture

Part No :

PA1005.070NLT

Manufacturer
PulseLarsen Antenna
Description
CURR SENSE XFMR 1:70 20A SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
PA1005.070NLT PDF
Availability
710 pieces
Unit Price
$2.07000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PA1005.070NLT is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PA1005.070NLT Specifications
Type Description
Series:PA1005.XXXNL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 1MHz
Type:Invasive
Current Rating (Amps):-
Inductance:0.75mOhm Primary, 4.75Ohm Secondary
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:Surface Mount
Current Ratio:0.284" L x 0.330" W (7.21mm x 8.38mm)
DC Resistance (DCR):0.217" (5.50mm)
Ratings:Gull Wing
