PE-51688NL

PE-51688NL

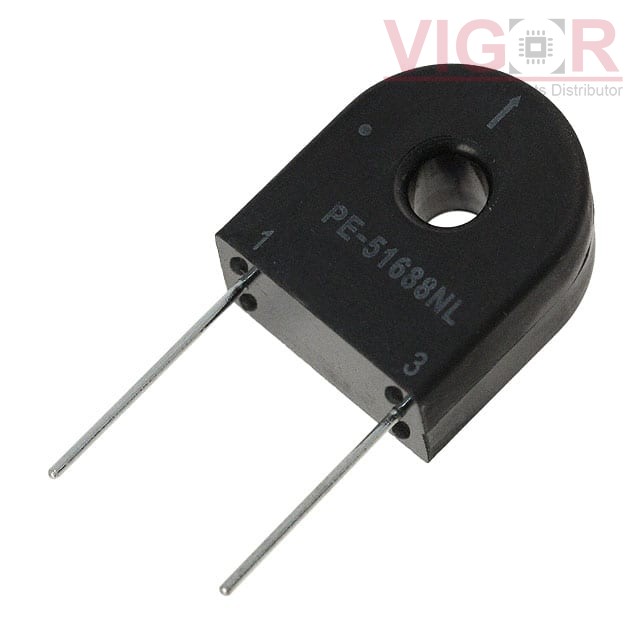

Image is for reference,
please contact us to get the real picture

Part No :

PE-51688NL

Manufacturer
PulseLarsen Antenna
Description
CURR SENSE XFMR 20A T/H
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PE-51688NL PDF
Availability
2072 pieces
Unit Price
$3.57000

Current price of PE-51688NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PE-51688NL Specifications
Type Description
Series:THT
Package:Tray
Part Status:Active
Frequency Range:20kHz ~ 200kHz
Type:Invasive
Current Rating (Amps):20 A
Inductance:80 mH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:-
Current Ratio:200:1
DC Resistance (DCR):200Ohm Primary, 4.5Ohm Secondary
Ratings:-
Mounting Type:Through Hole
Size / Dimension:0.670" L x 0.390" W (17.01mm x 9.90mm)
Height - Seated (Max):0.800" (20.32mm)
Termination Style:PC Pin
