CSE5-101001

CSE5-101001

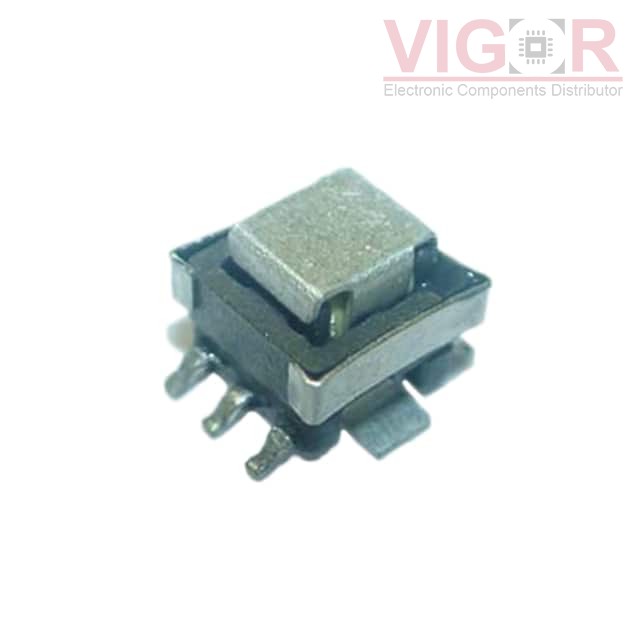

Image is for reference,
please contact us to get the real picture

Part No :

CSE5-101001

Manufacturer
Triad Magnetics
Description
CURR SENSE XFMR 1:100 10A SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
CSE5-101001 PDF
Availability
0 pieces
Unit Price
$1.79200

Current price of CSE5-101001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSE5-101001 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:250kHz Min
Type:Invasive
Current Rating (Amps):5.5Ohm Secondary
Inductance:-
ET (Volt-Time):Surface Mount
Turns Ratio - Primary:Secondary:0.272" L x 0.303" W (6.90mm x 7.70mm)
Current Ratio:0.210" (5.33mm)
DC Resistance (DCR):Gull Wing
