PA1005.050NLT

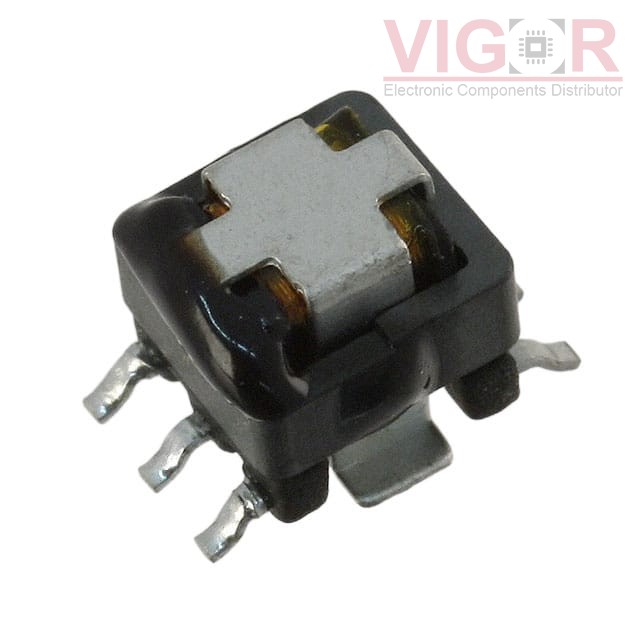

Image is for reference,
please contact us to get the real picture

Part No :: PA1005.050NLT

Manufacturer: PulseLarsen Antenna

Description: CURR SENSE XFMR 1:50 20A SMD

Catalog: Current Sense Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: PA1005.050NLT PDF

Availability: 30642 pieces

Unit Price: ~~$2.07000~~

Current price of PA1005.050NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA1005.050NLT Specifications

Type	Description
Series:	PA1005.XXXNL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Frequency Range:	50kHz ~ 1MHz
Type:	Invasive
Current Rating (Amps):	-
Inductance:	1:50
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	0.75mOhm Primary, 1.5Ohm Secondary
Current Ratio:	-
DC Resistance (DCR):	Surface Mount
Ratings:	0.284" L x 0.330" W (7.21mm x 8.38mm)
Mounting Type:	0.217" (5.50mm)
Size / Dimension:	Gull Wing

Please confirm the specifications of the products when ordering.
