B82801A1824A100

B82801A1824A100

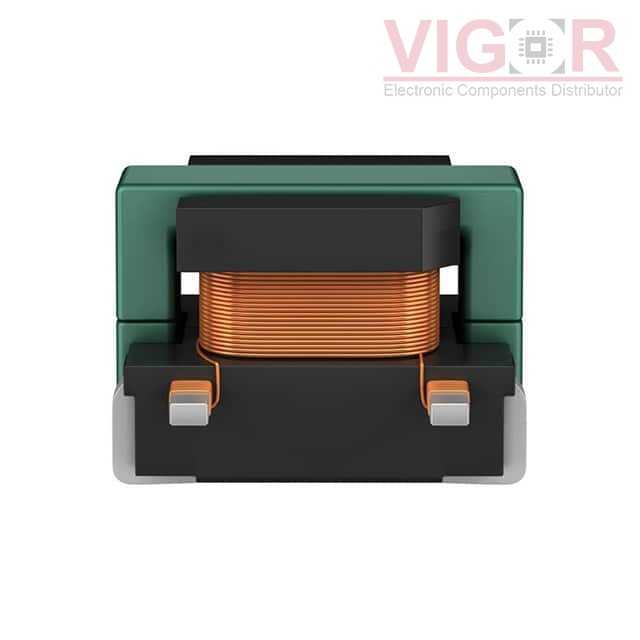

Image is for reference,
please contact us to get the real picture

Part No :

B82801A1824A100

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:100 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B82801A1824A100 PDF
Availability
14955 pieces
Unit Price
$3.27000

Current price of B82801A1824A100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82801A1824A100 Specifications
Type Description
Series:B82801A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 1MHz
Type:Invasive
Current Rating (Amps):-
Inductance:-
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:2.5mOhm Primary, 8.7Ohm Secondary
Current Ratio:-
DC Resistance (DCR):Surface Mount
Ratings:0.185" L x 0.138" W (4.70mm x 3.50mm)
Mounting Type:0.138" (3.50mm)
Size / Dimension:J Lead
