B78417A2287A003

B78417A2287A003

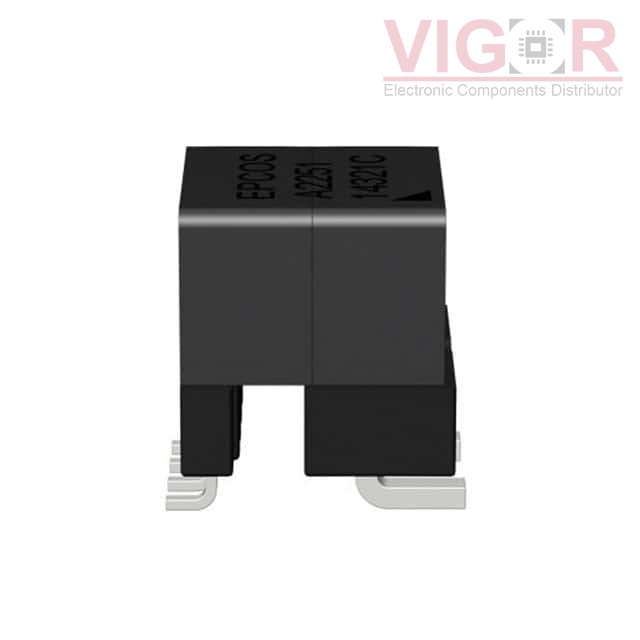

Image is for reference,
please contact us to get the real picture

Part No :

B78417A2287A003

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:125 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B78417A2287A003 PDF
Availability
120 pieces
Unit Price
$5.94000

Current price of B78417A2287A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78417A2287A003 Specifications
Type Description
Series:B78417
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 250kHz
Type:Invasive
Current Rating (Amps):1:125
Inductance:-
ET (Volt-Time):1.9mOhm Primary, 5.3Ohm Secondary
Turns Ratio - Primary:Secondary:-
Current Ratio:Surface Mount
DC Resistance (DCR):0.417" L x 0.480" W (10.60mm x 12.20mm)
Ratings:0.433" (11.00mm)
Mounting Type:Gull Wing
