F20-1800

F20-1800

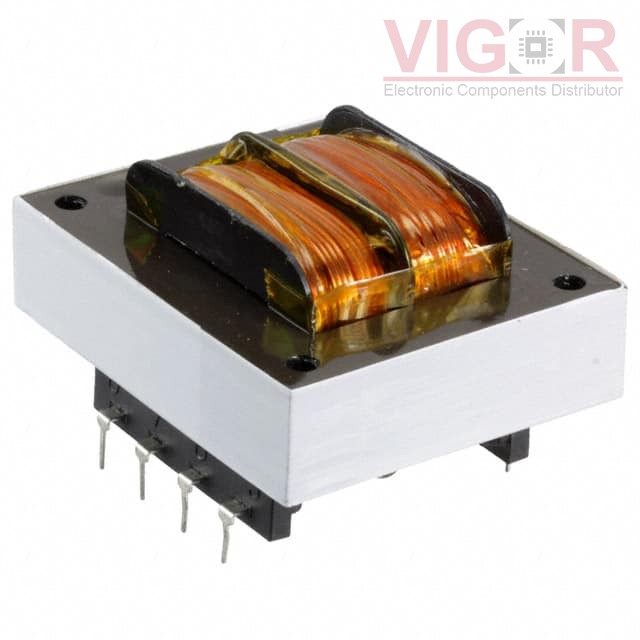

Image is for reference,
please contact us to get the real picture

Part No :

F20-1800

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 36VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
F20-1800 PDF
Availability
25 pieces
Unit Price
$11.18000

Current price of F20-1800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F20-1800 Specifications
Type Description
Series:Split Pack™, Class 2/3, F
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 10V, Series 20V
Current - Output (Max):Parallel 3.6A, Series 1.8A
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:No
Power - Max:36VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:66.68mm L x 55.55mm W
Height - Seated (Max):39.67mm
Voltage - Isolation:2500Vrms
Weight:1.1 lbs (499 g)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
