F20-120

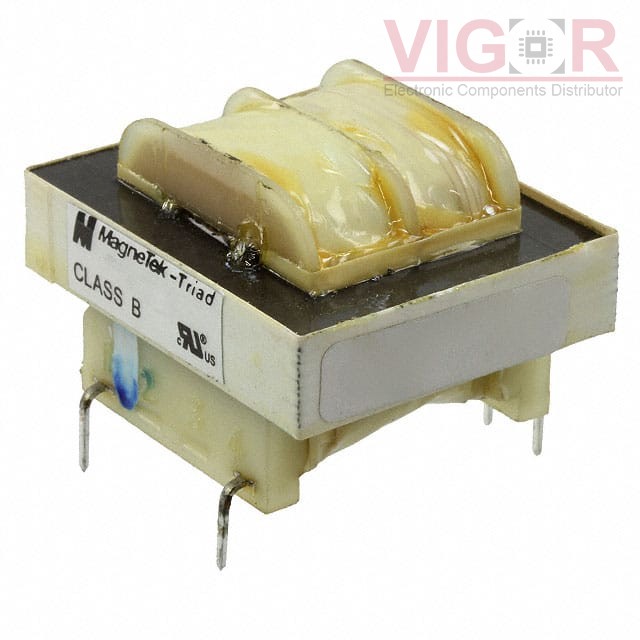

Image is for reference,
please contact us to get the real picture

Part No :: F20-120

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 2.5VA TH

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: F20-120 PDF

Availability: 1848 pieces

Unit Price: ~~$7.35000~~

Current price of F20-120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F20-120 Specifications

Type	Description
Series:	Split Pack™, Class 2/3, F
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V
Voltage - Secondary (Full Load):	Parallel 10V, Series 20V
Current - Output (Max):	Parallel 240mA, Series 120mA
Primary Winding(s):	Single
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	2.5VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	34.93mm L x 28.58mm W
Height - Seated (Max):	30.15mm
Voltage - Isolation:	2500Vrms
Weight:	0.25 lb (113.4 g)

Please confirm the specifications of the products when ordering.
