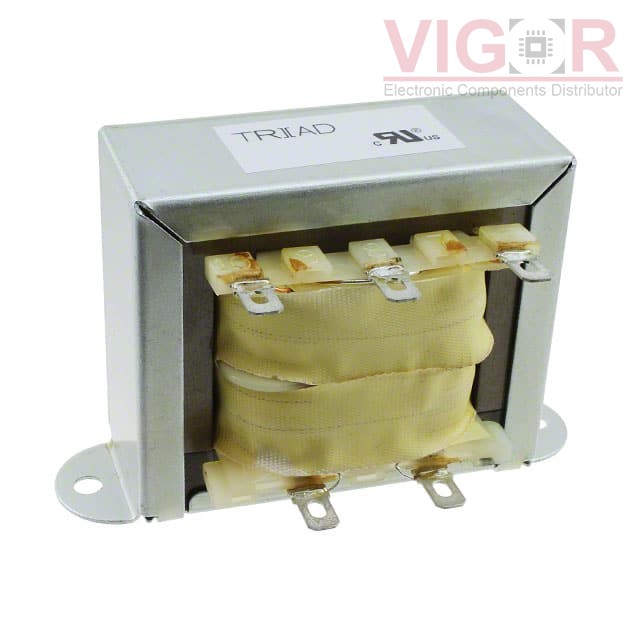

F7-20

F7-20

Image is for reference,
please contact us to get the real picture

Part No :

F7-20

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 56VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
F7-20 PDF
Availability
82568 pieces
Unit Price
$18.33000

Current price of F7-20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F7-20 Specifications
Type Description
Series:Quick Pack
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):20V
Current - Output (Max):2.8A
Primary Winding(s):Single
Secondary Winding(s):Single
Center Tap:Yes
Power - Max:56VA
Mounting Type:Chassis Mount
Termination Style:Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension:93.65mm L x 46.02mm W
Height - Seated (Max):57.15mm
Voltage - Isolation:2500VAC
Weight:1.7 lbs (771.1 g)
