F-90X

F-90X

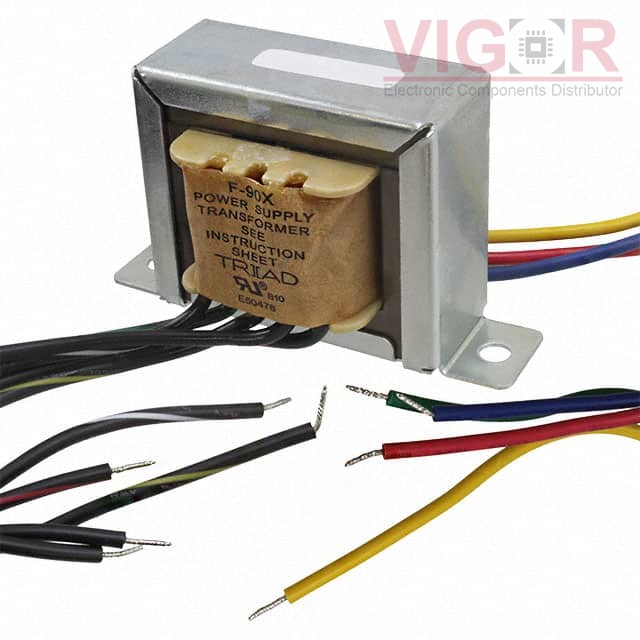

Image is for reference,
please contact us to get the real picture

Part No :

F-90X

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED CHASSIS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
F-90X PDF
Availability
82 pieces
Unit Price
$7.50600

Current price of F-90X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F-90X Specifications
Type Description
Series:Universal
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):10V, 20V, 40V
Current - Output (Max):100mA
Primary Winding(s):Single, Multiple Taps
Secondary Winding(s):Single, Multiple Taps
Center Tap:No
Power - Max:Varies
Mounting Type:Chassis Mount
Termination Style:Wire Leads
Size / Dimension:71.42mm L x 41.28mm W
Height - Seated (Max):41.28mm
Voltage - Isolation:1500Vrms
Weight:0.7 lb (317.51 g)
