FS36-550-C2

FS36-550-C2

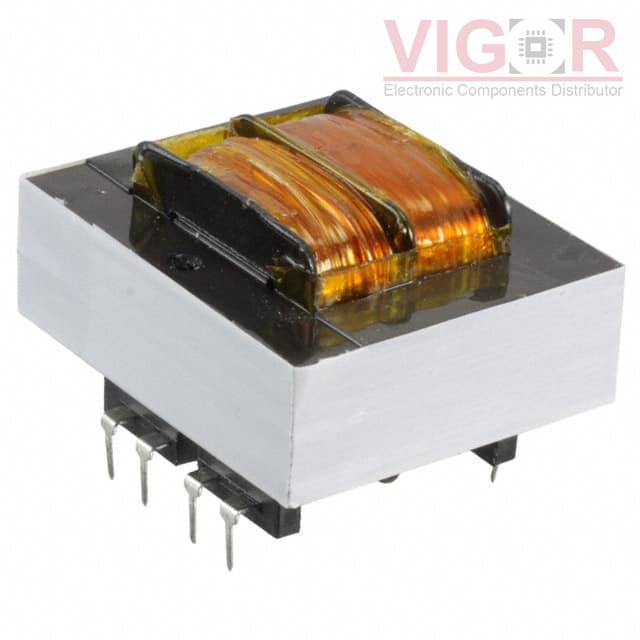

Image is for reference,
please contact us to get the real picture

Part No :

FS36-550-C2

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 20VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
FS36-550-C2 PDF
Availability
0 pieces
Unit Price
$9.66000

Current price of FS36-550-C2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FS36-550-C2 Specifications
Type Description
Series:Split Pack™, Class 2/3, FS
Package:Tube
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 18V, Series 36V
Current - Output (Max):Parallel 1.1A, Series 550mA
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:20VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:57.15mm L x 47.63mm W
Height - Seated (Max):36.50mm
Voltage - Isolation:4200Vrms
Weight:0.8 lb (362.87 g)
