1182L22

1182L22

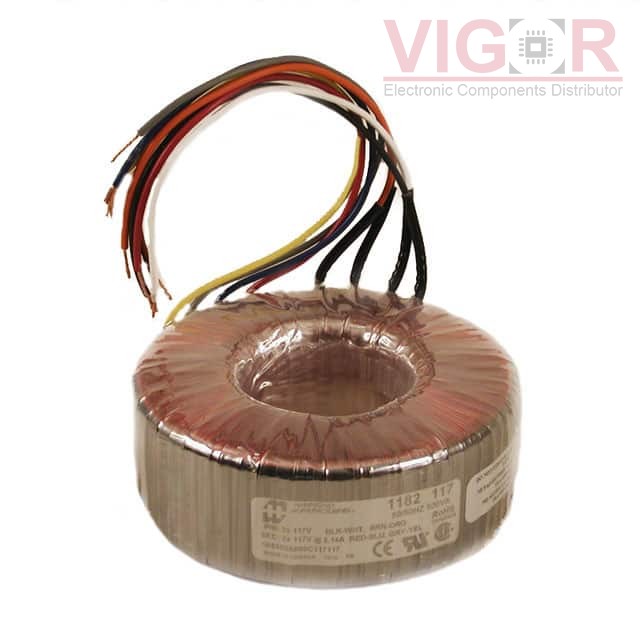

Image is for reference,
please contact us to get the real picture

Part No :

1182L22

Manufacturer
Hammond Manufacturing
Description
PWR XFMR TORO 80VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
1182L22 PDF
Availability
6 pieces
Unit Price
$52.28000

Current price of 1182L22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1182L22 Specifications
Type Description
Series:1182
Package:Box
Part Status:Active
Type:Toroidal
Voltage - Primary:117V
Voltage - Secondary (Full Load):Parallel 22V, Series 44V
Current - Output (Max):Parallel 3.64A, Series 1.82A
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:80VA
Mounting Type:Chassis Mount
Termination Style:Wire Leads
Size / Dimension:88.90mm Dia
Height - Seated (Max):38.10mm
Voltage - Isolation:4000Vrms
Weight:2.1 lbs (952.5 g)
