VPS56-2300

VPS56-2300

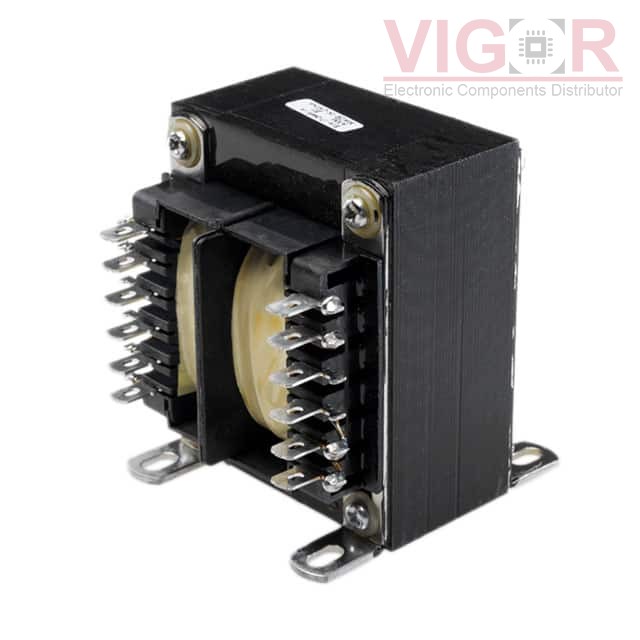

Image is for reference,
please contact us to get the real picture

Part No :

VPS56-2300

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 130VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
VPS56-2300 PDF
Availability
0 pieces
Unit Price
$27.62000

Current price of VPS56-2300 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VPS56-2300 Specifications
Type Description
Series:QUICK-CONNECT WORLD SERIES™
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 28V, Series 56V
Current - Output (Max):Parallel 4.6A, Series 2.3A
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:130VA
Mounting Type:Chassis Mount
Termination Style:Solder, Quick Connect
Size / Dimension:71.44mm L x 68.26mm W
Height - Seated (Max):85.73mm
Voltage - Isolation:4000VAC
Weight:4.2 lbs (1.9 kg)
