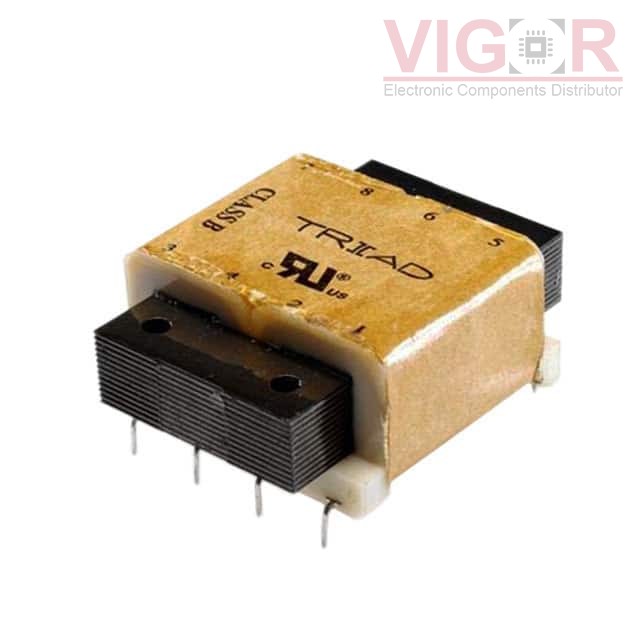

FP20-1200

Image is for reference,
please contact us to get the real picture

Part No :: FP20-1200

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 24VA TH

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: FP20-1200 PDF

Availability: 226 pieces

Unit Price: ~~$17.41000~~

Current price of FP20-1200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FP20-1200 Specifications

Type	Description
Series:	Flat Pack™
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 10V, Series 20V
Current - Output (Max):	Parallel 2.4A, Series 1.2A
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	24VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	72.90mm L x 57.15mm W
Height - Seated (Max):	34.93mm
Voltage - Isolation:	2000Vrms
Weight:	0.938 lb (425.47 g)

Please confirm the specifications of the products when ordering.
