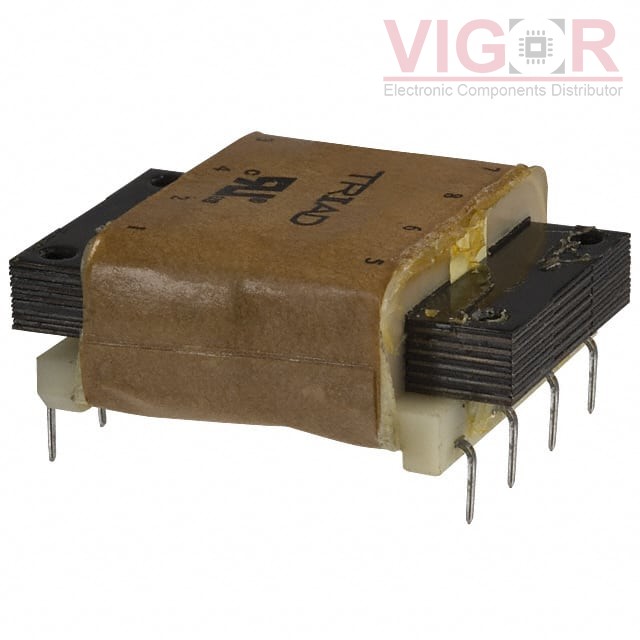

FP20-125

Image is for reference,
please contact us to get the real picture

Part No :: FP20-125

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 2.5VA TH

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: FP20-125 PDF

Availability: 704 pieces

Unit Price: ~~$10.76000~~

Current price of FP20-125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FP20-125 Specifications

Type	Description
Series:	Flat Pack™
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 10V, Series 20V
Current - Output (Max):	Parallel 250mA, Series 125mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	2.5VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	47.63mm L x 39.67mm W
Height - Seated (Max):	16.51mm
Voltage - Isolation:	2000Vrms
Weight:	0.313 lb (141.97 g)

Please confirm the specifications of the products when ordering.
