VPP36-1560-B

VPP36-1560-B

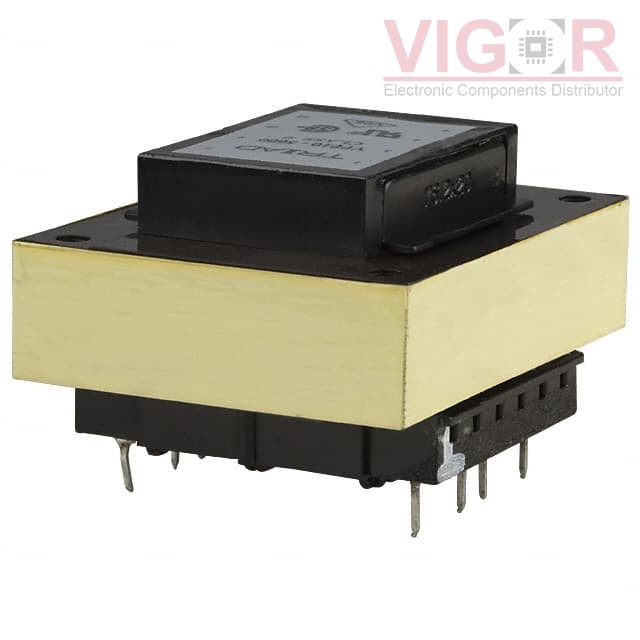

Image is for reference,
please contact us to get the real picture

Part No :

VPP36-1560-B

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 56VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
VPP36-1560-B PDF
Availability
0 pieces
Unit Price
$14.64000

Current price of VPP36-1560-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VPP36-1560-B Specifications
Type Description
Series:PC Mount: World Series™
Package:Bulk
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 18V, Series 36V
Current - Output (Max):Parallel 3.12A, Series 1.56A
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:56VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:76.20mm L x 63.50mm W
Height - Seated (Max):46.02mm
Voltage - Isolation:4000Vrms
Weight:1.7 lbs (771.1 g)
