F-146XP

F-146XP

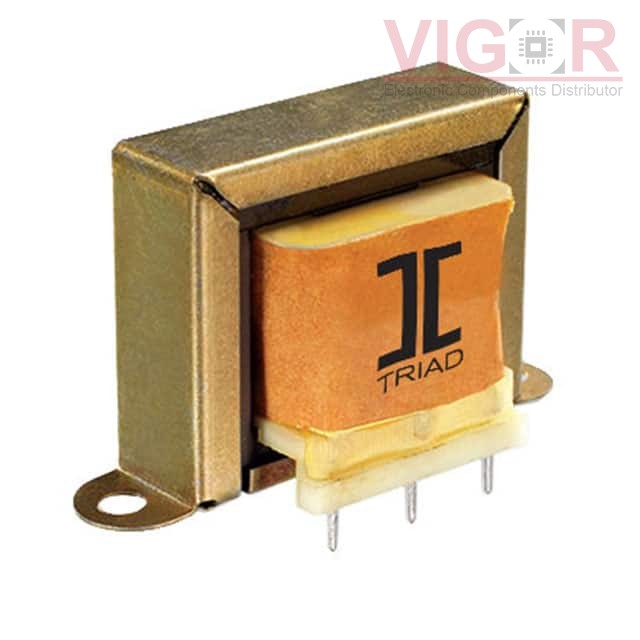

Image is for reference,
please contact us to get the real picture

Part No :

F-146XP

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 4.5VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
F-146XP PDF
Availability
148 pieces
Unit Price
$9.21000

Current price of F-146XP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F-146XP Specifications
Type Description
Series:Single Primary
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 58V, Series 116V
Current - Output (Max):Parallel 66mA, Series 33mA
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:No
Power - Max:4.5VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:60.33mm L x 31.75mm W
Height - Seated (Max):36.50mm
Voltage - Isolation:1500Vrms
Weight:0.469 lb (212.73 g)
